Factory-Direct
Road Sweeper Trucks

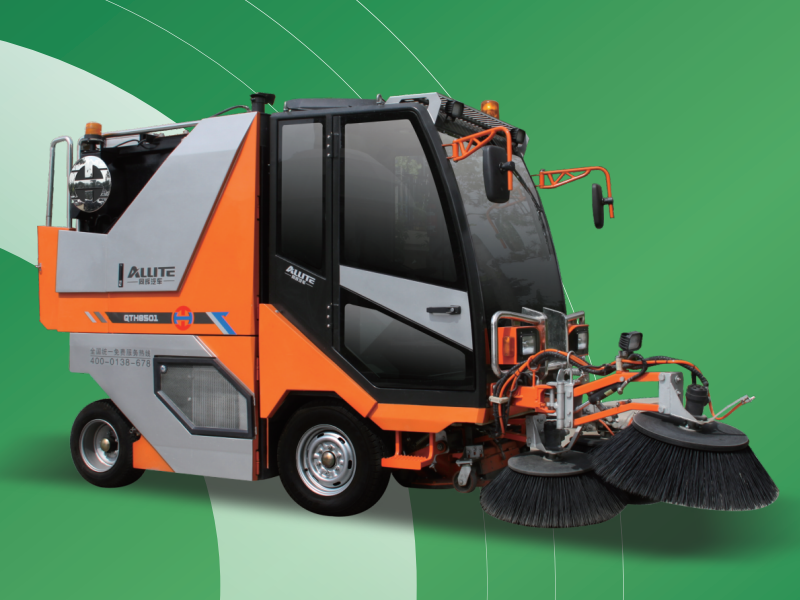

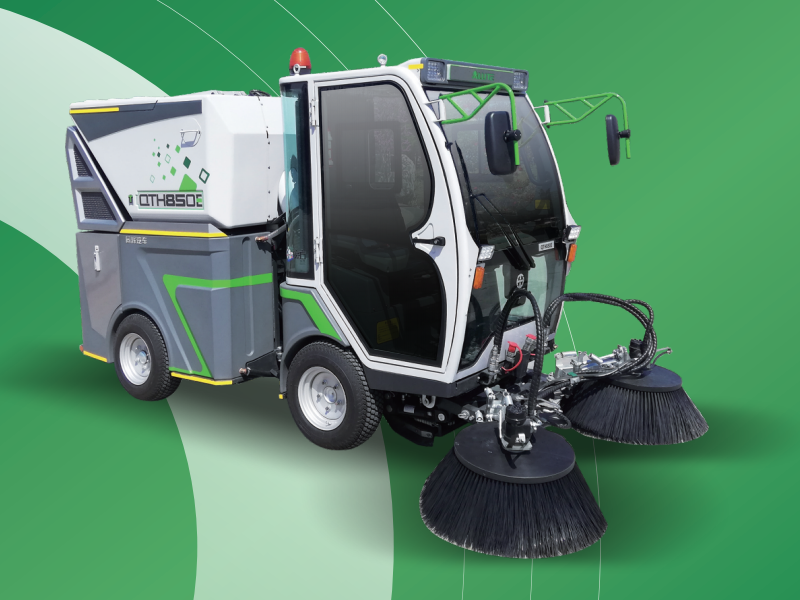

Diesel Road Sweeper
Ultra-Low Fuel Consumption & Long Range：Equipped with a 42.1kW Yanmar diesel engine; operational fuel consumption is around 4L/h.
Long Operating Time：A single water refill allows 2.5 hours of continuous misting, dust suppression, and sweeping.
High-Speed Operation：Cleaning speed reaches up to 7km/h with a 97% cleanliness rate; max operational speed is 10km/h.
Operational Safety：Equipped with highly visible work lights and warning lights to ensure safe operation.
Ultra-Large Capacity：270L water tank and 910L waste hopper reduce refills and dumping for higher efficiency.
High-Efficiency Chassis：Powered by a Yanmar 4TNV series engine, built for harsh conditions and a 25% gradeability.
Fast Transit Speed：The vehicle features a maximum transit speed of up to 21km/h.
Versatile & Quick Switching：Optional attachments available for snow removal, high-pressure washing, sweeping, road washing, rear suction, and waste transfer.
Technical Specifications
| Item | QTH8502 | Item | QTH8502 | Item | QTH8502 |
Overall Dimensions (LxWxH) | 3780×1200×1990 mm | Max Travel Speed | 25 Km/h | Volume of Dust Suppression Water Tank | 270 L |
Max Gross Weight | 3134 Kg | Cleaning Operational Speed | 3~10 Km/h | Max Dumping Angle | 90° |
Rated Power of Diesel Engine | 36.2 Kw@2100rpm | Min Turning Inner Radius | 1563 mm | Max Pressure of High-Pressure Water Pump | 150-207Bar |
Fuel Consumption under Standard Operating Conditions | ≤2.8 L/h@1500rpm | Max Diameter of Suction Material | 174 mm | Rated Flow of High-Pressure Water Pump | 11-15 L/min |
Max Dumping Height | 1600 mm | Max Sweeping Width | 2.2 m | Length of High-Pressure Water Pipe | 9 m |
Max Gradeability | 29% | Cleaning Rate | > 97% | Snow Sweeping Brush Dimensions (WxDiameter) | 1600×600 mm |
Sweeping Operational Capacity | 20000 m2/h | Effective Volume of Waste Hopper | 810 L | Snow Shovel Dimensions (WxH) | 1600×600 mm |

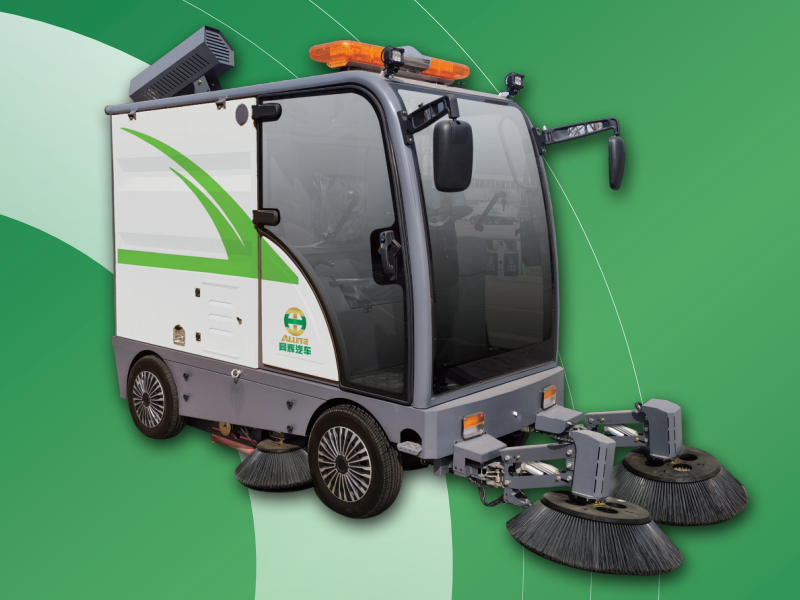

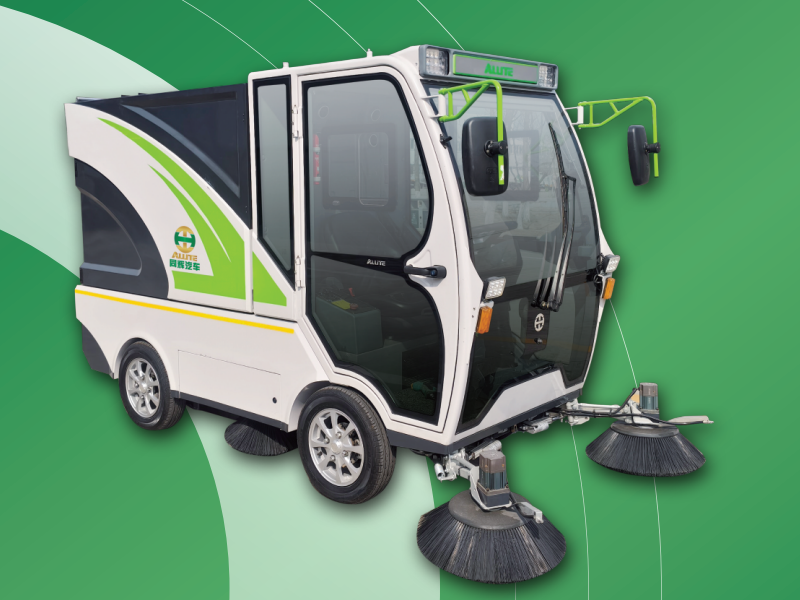

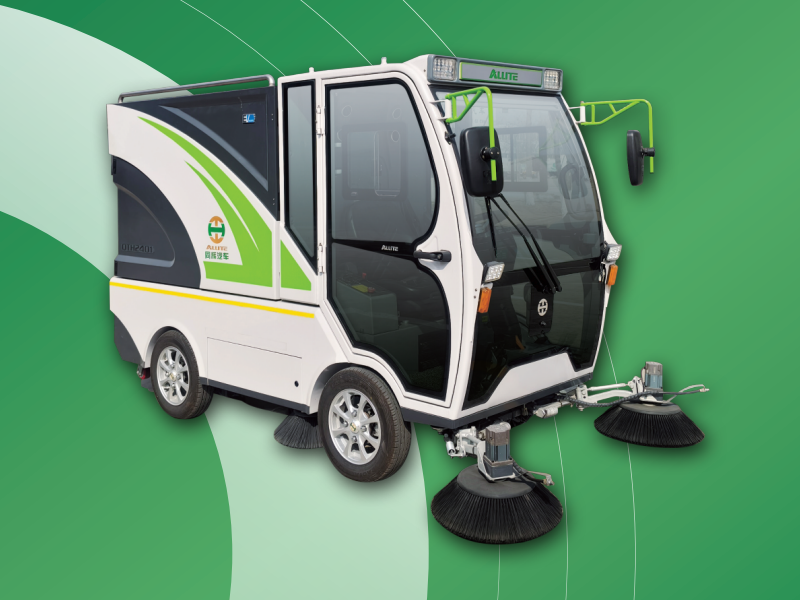

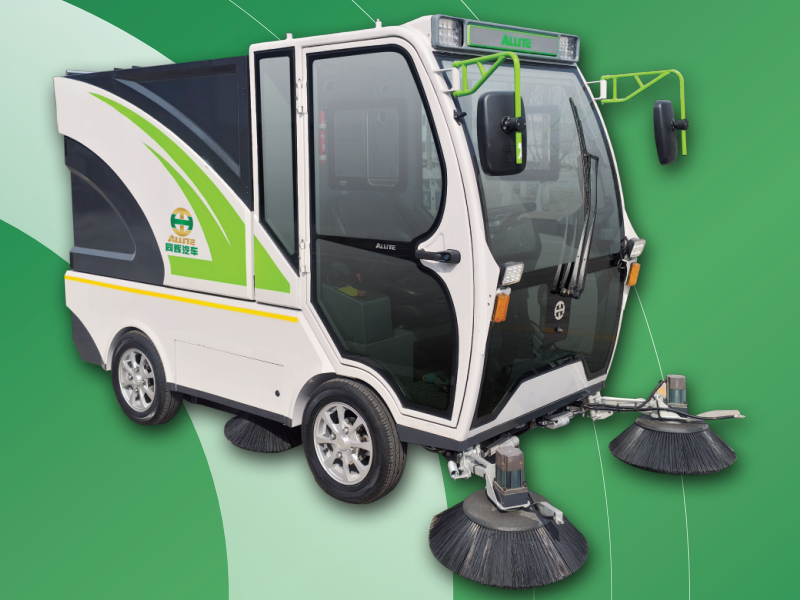

Electric Road Sweeper 01
Flexible Charging Options：Supports public and home charging: 4h high-voltage fast charge or 6h slow charge.
Ultra-Large Capacity：346L water tank, 810L hopper, and 150L water recycling system reduce downtime for refilling/dumping.
Extended Operating Time：A single water refill provides 5 hours of continuous sweeping and mist dust suppression under standard conditions.
High-Efficiency Chassis：Equipped with three high-efficiency permanent magnet synchronous AC motors to handle harsh conditions and 25% gradeability.
Curb Climbing Ability：Capable of climbing 150mm curbs for seamless operation on sidewalks.
High-Speed Operation：Cleaning speed up to 7km/h with a 97% cleanliness rate; maximum operational speed reaches 10km/h.
Technical Specifications
| Item | QTH850E72V | Item | QTH850E72V | Item | QTH850E72V |
Overall Dimensions (LxWxH) | 3780x1200x1990mm | Max Travel Speed | 25 Km/h | Volume of Dust Suppression Water Tank | 346L |
Max Gross Weight (+Water+Person+Waste) | 3200Kg | Cleaning Operational Speed | 3~10Km/h | Max Dumping Angle | 90° |
Total Battery Energy | 43Kwh | Min Turning Inner Radius | 1563mm | Max Pressure of High-Pressure Water Pump | 130 Bar |
Standard Operating Range Time | 8h | Max Diameter of Suction Material | 174mm | Rated Flow of High-Pressure Water Pump | 10 L/min |
Max Dumping Height | 1600mm | Max Sweeping Width | 2.2m | Length of High-Pressure Water Pipe | 9m |
Max Gradeability | 25% | Cleaning Rate | >97% | Snow Shovel Dimensions (WxH) | 1600x600mm |
Sweeping Operational Capacity | 20000m2/h | Effective Volume of Waste Hopper | 810L |

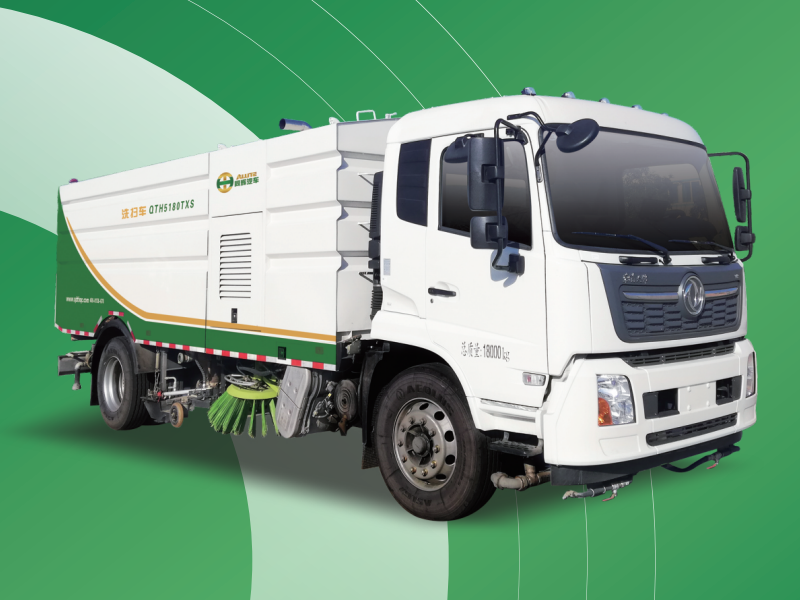

14T Diesel Washer Sweeper
Professional Chassis & Durable：Dongfeng chassis modified for sanitation; powder coating offers superior anti-corrosion.
Large Capacity & Efficient Operation：9m³ water tank and 7m³ hopper; sloped tank structure ensures fast discharge.
Safe, Reliable & Long-Lasting：Pump dry-run protection, low water voice alarm, and tank lift safety self-locking.
Intelligent Operation & Easy Control：High wastewater suction rate; sweeping mechanism and side sprays auto-reset and avoid obstacles.
Central Large Screen & Simple Handling：Integrated large screen with one-key operation, real-time monitoring, and flexible mode switching.
Fully Featured & Versatile Multi-Use：9 modes and 3 intensities; integrates self-cleaning, flushing, sprinkling, and spray gun.
Technical Specifications
| Item | Unit | QTH5180TXS (Notice No.) | Item | Unit | QTH5180TXS (Notice No.) |
Overall Dimensions (LxWxH) | mm | 8570x2470x3090 | Max Speed | km/h | 89 |
Chassis Model | DFH1180EX8 | Operational Speed | km/h | 3-20 | |
Engine Model | B6.2NS6B230 | Max Working Pressure | MPa | 20 | |
Engine Power | kw | 169 | Suction Hose Diameter | mm | 200 |
Auxiliary Engine Model | B170 | Waste Hopper Volume | m³ | 7 | |
Auxiliary Engine Power | kw | 125 | Clean Water Tank Volume | m³ | 9 |
Cab Configuration | Air Conditioner | Max Gross Weight | kg | 18000 | |
Cleaning Width | m | 3.5 |

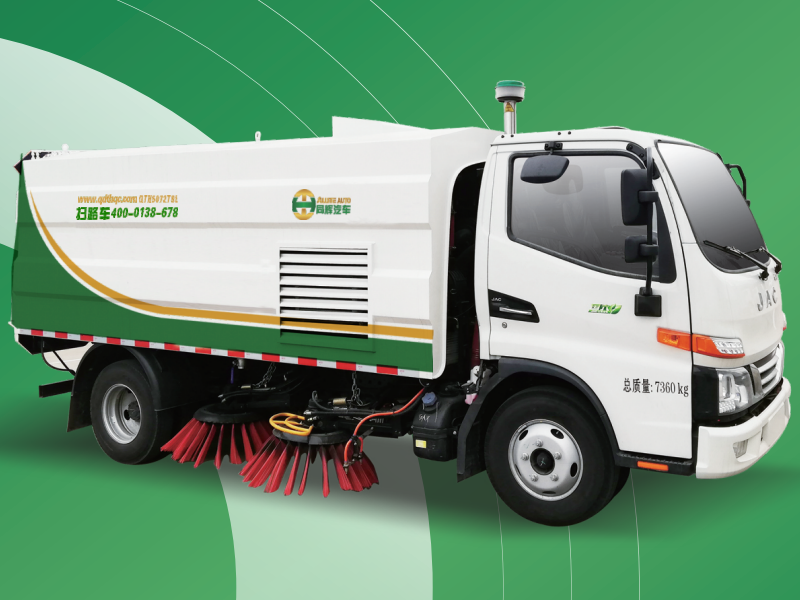

Diesel Road Sweeper
Professional Chassis：Modified from class II chassis for sanitation; powerful, low consumption, eco-friendly, and durable.
Ultra-Large Capacity & Long Operation：1m³ water tank, 3.5m³ hopper, 2h continuous spraying; flat bottom with dumping angle ≥45 for fast discharge.
Efficient Operation System：Mid-4 sweeping discs and rear floating nozzle with roller brush for high clean rate; auto avoidance/reset; electric diaphragm pump for wet dust control.
Intelligent Control：Centralized cab control with front/rear monitoring and roller brush on suction nozzle for smart and easy handling.
Technical Specifications
| It | Unit | QTH5072TSLA (Notice No.) | Item | Unit | QTH5072TSLA (Notice No.) |
Overall Dimensions (LxWxH) | mm | 5710x2050x2600 | Max Speed | km/h | 100 |
Chassis Model | HFC1071P33K1C7ZS | Operational Speed | km/h | 3-15 | |
Engine Model | D25TCIF1 | Max Working Pressure | MPa | 16 | |
Engine Power | kw | 110 | Suction Hose Diameter | mm | 200 |
Cab Configuration | Air Conditioner | Waste Hopper Volume | m³ | 3.5 | |
Max Gross Weight | kg | 7360 |

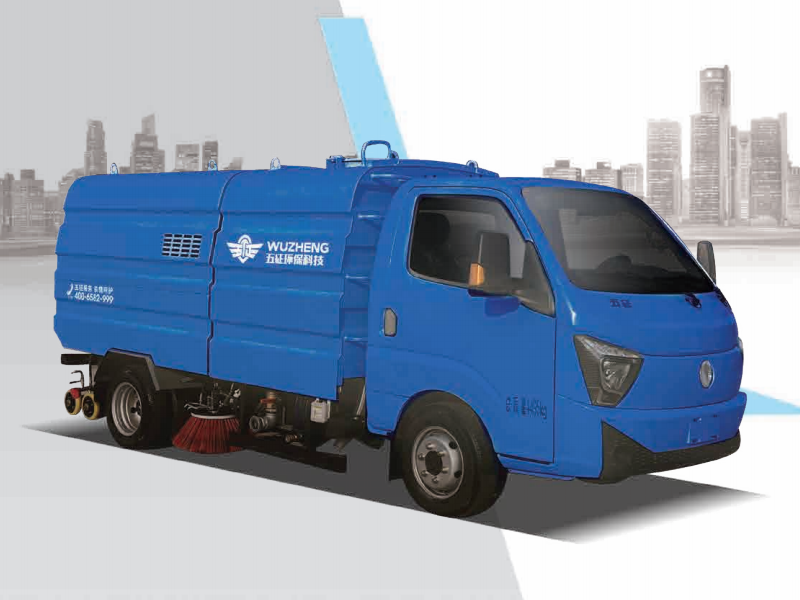

3T Pure Electric Washer Sweeper
Versatile Functions：Equipped with dry/wet/wash sweeping and spray gun scrubbing to fully meet diverse operational needs.
Reliable & Durable：Features top-tier CATL battery; tank with electrophoresis + asphalt anti-corrosion, and bin made of high-strength weathering steel.
Long Operation：Tank volume 3m³ for 85-min sweeping; 63.75 kWh battery supports over 4 hours of continuous operation.
Intelligent Warning：Equipped with a smart warning system that automatically alarms and cuts power at low water levels to prevent dry heating.
Convenient Charging：Fast charging takes only 1 hour to reach 100%; slow charging conveniently supports standard household electricity.
Technical Specifications
| Notice No. | Unit | WZK5041TXSD66BEV | Notice No. | Unit | WZK5041TXSD66BEV |
Clean Water Tank Volume | m³ | 3 | Fastest Charging Time | h | ≤ 1 |
Wastewater Tank Volume | m³ | 2.2 | Wheelbase | mm | 3100 |
Gross Weight | kg | 4495 | Max Sweeping & Washing Width | mm | 2450 |
Overall Dimensions | mm | 5850 × 1870 × 2330 | Sweeping & Washing Speed | km/h | 3~20 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 63.75 | Hose Length of Spray Gun Reel | m | 15 |

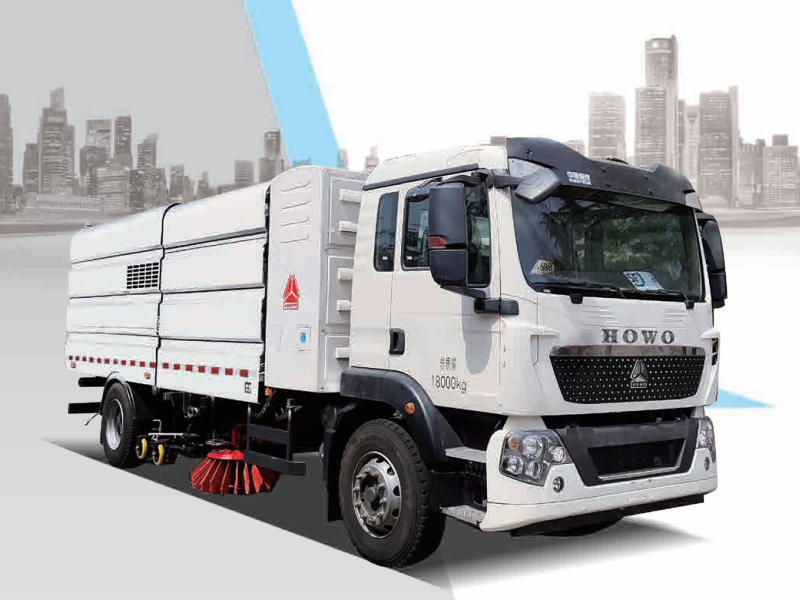

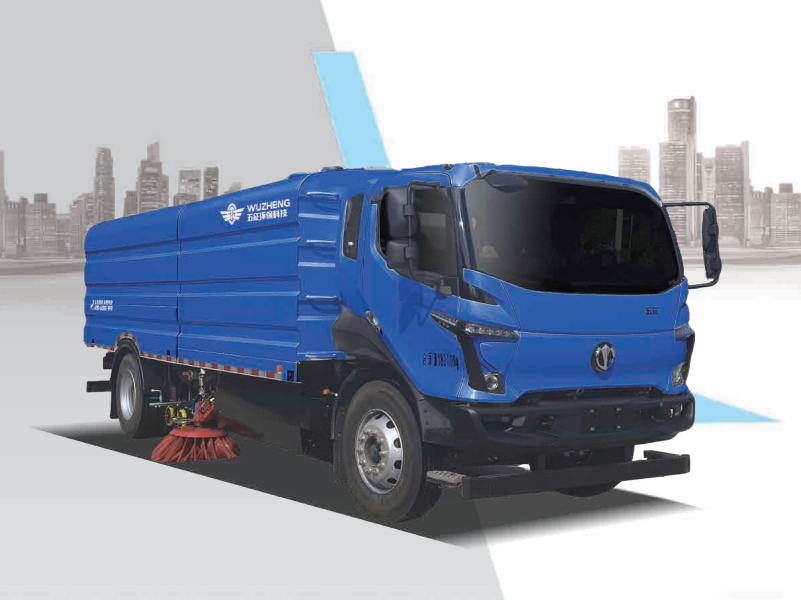

18T Pure Electric Washer Sweeper
Versatile Functions：Equipped with dry/wet/wash sweeping and spray gun scrubbing to fully meet diverse and complex operational needs.
Energy-Saving & Efficient：Adopts a SINOTRUK pure electric chassis and 3-stage energy recovery system, saving over 20% energy to lower operating costs.
Long Operation：Tank volume ≥ 10m³ for 110-min sweeping; 242.27kWh battery supports over 5 hours of continuous operation per charge.
Intelligent Warning：Equipped with a smart warning system that automatically alarms and cuts pump power at low water levels to prevent dry heating.
Reliable Quality：Features a top-tier CATL battery; upper tank made of SUS304 stainless steel and bin of SPA-H weathering steel for high durability.
Technical Specifications
| Notice No. | Unit | WZK5180TXSZZBEV | Notice No. | Unit | WZK5180TXSZZBEV |
Clean Water Tank Volume | m³ | 10 | Fastest Charging Time | h | ≤1.5 |
Wastewater Tank Volume | m³ | 7 | Wheelbase | mm | 5300 |
Gross Weight | kg | 18000 | Max Sweeping & Washing Width | mm | 4100 |
Overall Dimensions | mm | 9185 × 2500 × 3190 | Sweeping & Washing Speed | km/h | 3~20 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 242.27 | Hose Length of Spray Gun Reel | m | 20 |

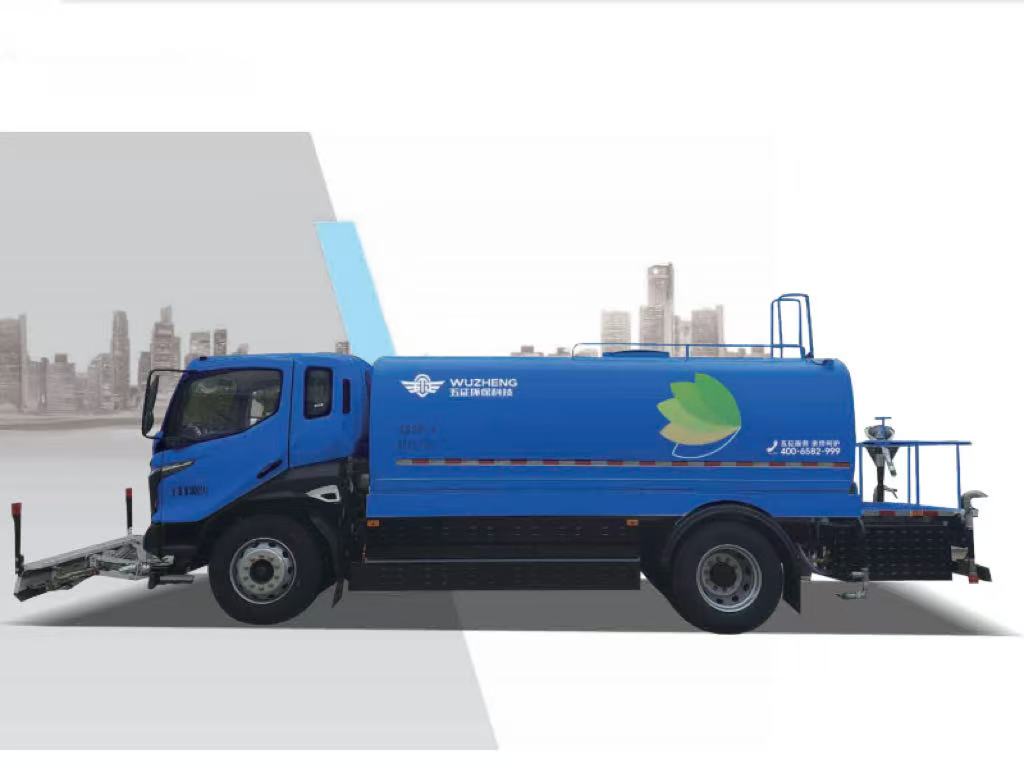

12m³ Pure Electric Washer Truck
Wide Applicability：Tank volume is 12m³ providing a larger capacity for the same wheelbase and longer mileage per operation; it can adapt to scenarios such as road washing, landscaping, and spray dust suppression.
Long Range：The measured range under actual working conditions is ≥200km, satisfying the needs of 10 washing operations.
Efficient Fast Charging：Fast charging, with a 20%-100% charging time of <1.5h.
Anti-Corrosion & Durable：The tank plates undergo electrophoresis, with internal asphalt anti-corrosion coating and external baked finish topcoat, making it highly corrosion-resistant.
Reliable Quality：Rectangular-oval tank structure equipped with baffle plates, providing resistance to impact and extrusion.
Technical Specifications
| Notice No. | Unit | WZK5180GQXP78BEV | Notice No. | Unit | WZK5180GQXP78BEV |
Tank Volume | m³ | 12 | Battery Type/Brand/Capacity | kWh | LFP / CATL / 164.86 |
Gross Weight | kg | 18000 | Operating Range | km | ≥200 |
Overall Dimensions | mm | $7960, 8500 \times 2460, 2500 \times 2905$ | Wheelbase | mm | 4200 |

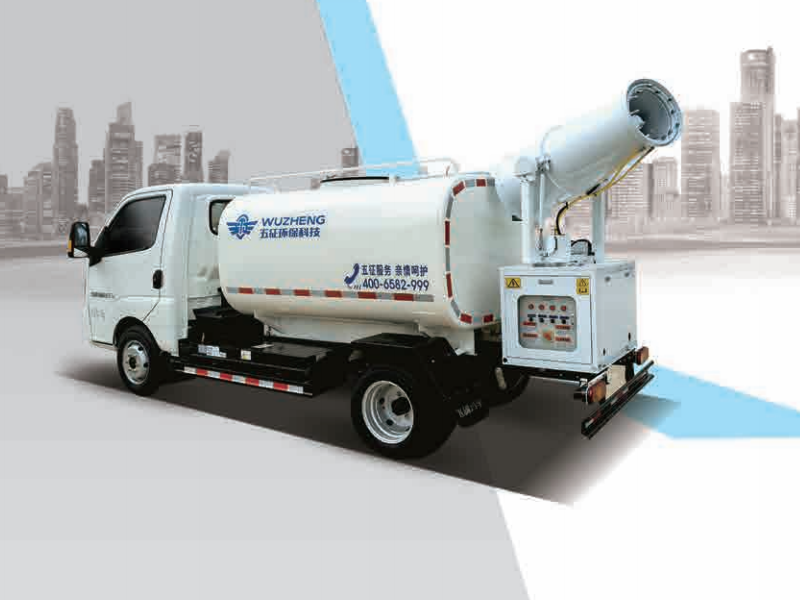

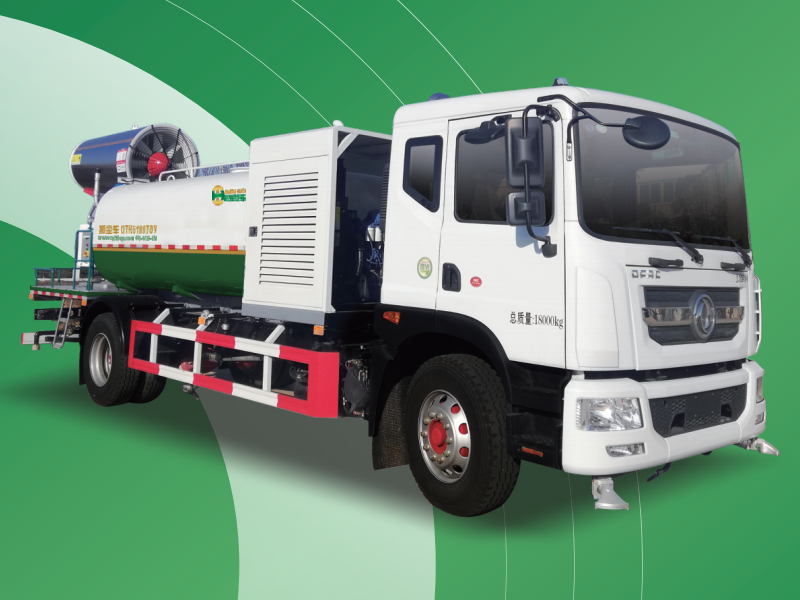

Pure Electric Dust Suppression Truck
Wide Applicability：Applicable to landscaping, road flushing, spray dust suppression, factory disinfection, etc.
Reliable & Durable：The tank surface features electrophoresis primer + baked finish, with internal asphalt anti-corrosion, making it reliable and durable.
Excellent Performance：The rear fog cannon has an effective spray distance of 25 meters.
High Efficiency：Optimized pipeline design and multi-functional composite operations significantly improve the efficiency of single washing and spraying tasks.
Convenient Operation：Highly integrated system controls with one-touch switching for multiple working conditions, significantly reducing driver operation intensity.
Technical Specifications
| Name | Unit | Pure Electric Dust Suppression Truck |
Gross Weight | kg | 4495 |
Wheelbase | mm | 2860 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 55.7 |
Tank Volume | 3 | 2.8 |
Fog Cannon Spray Distance | m | 25 |
