Electric Zero-Emission
Sweeper Trucks
3T Pure Electric Washer Sweeper
Versatile Functions：Equipped with dry/wet/wash sweeping and spray gun scrubbing to fully meet diverse operational needs.
Reliable & Durable：Features top-tier CATL battery; tank with electrophoresis + asphalt anti-corrosion, and bin made of high-strength weathering steel.
Long Operation：Tank volume 3m³ for 85-min sweeping; 63.75 kWh battery supports over 4 hours of continuous operation.
Intelligent Warning：Equipped with a smart warning system that automatically alarms and cuts power at low water levels to prevent dry heating.
Convenient Charging：Fast charging takes only 1 hour to reach 100%; slow charging conveniently supports standard household electricity.
Technical Specifications
| Notice No. | Unit | WZK5041TXSD66BEV | Notice No. | Unit | WZK5041TXSD66BEV |
Clean Water Tank Volume | m³ | 3 | Fastest Charging Time | h | ≤ 1 |
Wastewater Tank Volume | m³ | 2.2 | Wheelbase | mm | 3100 |
Gross Weight | kg | 4495 | Max Sweeping & Washing Width | mm | 2450 |
Overall Dimensions | mm | 5850 × 1870 × 2330 | Sweeping & Washing Speed | km/h | 3~20 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 63.75 | Hose Length of Spray Gun Reel | m | 15 |
5.5T Pure Electric Washer Sweeper
Versatile Functions：Equipped with functions such as dry sweeping, wet sweeping, washing & sweeping, and spray gun scrubbing to meet various operational needs.
Reliable & Durable：SUS304 food-grade stainless steel water tank paired with an SPA-H weathering steel waste bin offers high strength and corrosion resistance.
Ultra-Large Capacity：5.5m³ ultra-large capacity water tank, supporting continuous operation for over 90 minutes.
Intelligent Early Warning：Equipped with an intelligent early warning system—when the water level falls below the safe value, the sensor will alarm immediately and automatically cut off the water pump power, completely eliminating the risk of dry heating!
Reliable Quality：Independent waste bin design, simple and reliable. Key components such as the centrifugal fan and high-pressure water pump are from well-known brands, ensuring reliability and durability.
Technical Specifications
| Notice No. | Unit | WZK5122TXSW78BEV | Notice No. | Unit | WZK5122TXSW78BEV |
Clean Water Tank Volume | m³ | 5.5 | Fastest Charging Time | h | ≤1 |
Wastewater Tank Volume | m³ | 4.5 | Wheelbase | mm | 4200 |
Gross Weight | kg | 12495 | Max Sweeping & Washing Width | mm | 3250 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 164.86 | Sweeping & Washing Speed | km/h | 3~20 |
Hose Length of Spray Gun Reel | m | 20 |
18T Pure Electric Washer Sweeper
Versatile Functions：Equipped with functions such as dry sweeping, wet sweeping, washing & sweeping, and spray gun scrubbing to meet various operational needs.
Long Operation Time：Water tank volume ≥9.5m³, allowing continuous washing & sweeping for 110 minutes; battery capacity ≥164 kWh, supporting continuous washing & sweeping operations for over 6 hours.
Reliable & Durable：The chassis comes standard with EBS (Electronic Brakeforce System), EPS (Electric Power Steering), remote key, and remote control system to enhance active safety; the upper water tank is equipped with a low liquid level sensor alarm device to prevent the high-pressure water pump from being damaged due to water shortage.
Efficient Charging：Dual-gun fast charging takes 1 hour to fully charge.
Reliable Quality：The chassis battery utilizes CATL—a top-tier brand, ensuring reliability and durability. The upper water tank and waste bin are made of SPA-H weathering steel, offering high structural strength and strong anti-corrosion capability.
Technical Specifications
| Notice No. | Unit | WZK5180TXSP78BEV | Notice No. | Unit | WZK5180TXSP78BEV |
Clean Water Tank Volume | m³ | 9.5 | Fastest Charging Time | h | ≤ 1 |
Wastewater Tank Volume | m³ | 7 | Wheelbase | mm | 5300 |
Gross Weight | kg | 18000 | Max Sweeping & Washing Width | mm | 3500 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 164.86 | Sweeping & Washing Speed | km/h | 3~20 |
Hose Length of Spray Gun Reel | m | 20 |
18T Pure Electric Washer Sweeper
Versatile Functions：Equipped with dry/wet/wash sweeping and spray gun scrubbing to fully meet diverse and complex operational needs.
Energy-Saving & Efficient：Adopts a SINOTRUK pure electric chassis and 3-stage energy recovery system, saving over 20% energy to lower operating costs.
Long Operation：Tank volume ≥ 10m³ for 110-min sweeping; 242.27kWh battery supports over 5 hours of continuous operation per charge.
Intelligent Warning：Equipped with a smart warning system that automatically alarms and cuts pump power at low water levels to prevent dry heating.
Reliable Quality：Features a top-tier CATL battery; upper tank made of SUS304 stainless steel and bin of SPA-H weathering steel for high durability.
Technical Specifications
| Notice No. | Unit | WZK5180TXSZZBEV | Notice No. | Unit | WZK5180TXSZZBEV |
Clean Water Tank Volume | m³ | 10 | Fastest Charging Time | h | ≤1.5 |
Wastewater Tank Volume | m³ | 7 | Wheelbase | mm | 5300 |
Gross Weight | kg | 18000 | Max Sweeping & Washing Width | mm | 4100 |
Overall Dimensions | mm | 9185 × 2500 × 3190 | Sweeping & Washing Speed | km/h | 3~20 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 242.27 | Hose Length of Spray Gun Reel | m | 20 |

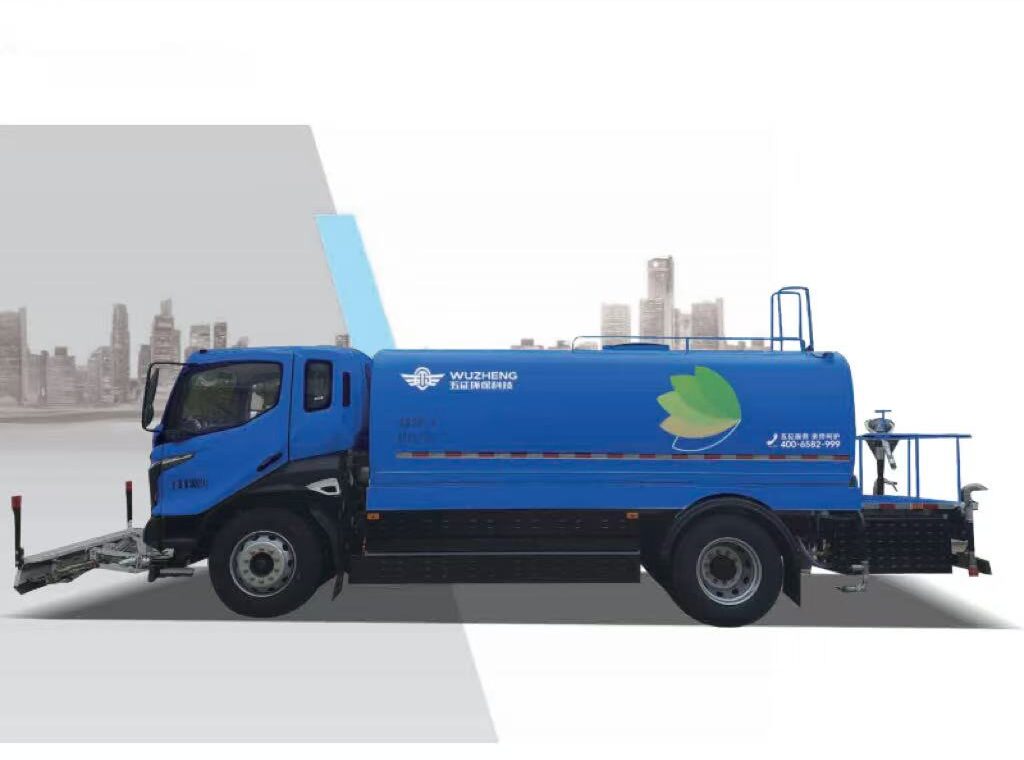

12m³ Pure Electric Washer Truck
Wide Applicability：Tank volume is 12m³ providing a larger capacity for the same wheelbase and longer mileage per operation; it can adapt to scenarios such as road washing, landscaping, and spray dust suppression.
Long Range：The measured range under actual working conditions is ≥200km, satisfying the needs of 10 washing operations.
Efficient Fast Charging：Fast charging, with a 20%-100% charging time of <1.5h.
Anti-Corrosion & Durable：The tank plates undergo electrophoresis, with internal asphalt anti-corrosion coating and external baked finish topcoat, making it highly corrosion-resistant.
Reliable Quality：Rectangular-oval tank structure equipped with baffle plates, providing resistance to impact and extrusion.
Technical Specifications
| Notice No. | Unit | WZK5180GQXP78BEV | Notice No. | Unit | WZK5180GQXP78BEV |
Tank Volume | m³ | 12 | Battery Type/Brand/Capacity | kWh | LFP / CATL / 164.86 |
Gross Weight | kg | 18000 | Operating Range | km | ≥200 |
Overall Dimensions | mm | $7960, 8500 \times 2460, 2500 \times 2905$ | Wheelbase | mm | 4200 |
Pure Electric Dust Suppression Truck
Wide Applicability：Applicable to landscaping, road flushing, spray dust suppression, factory disinfection, etc.
Reliable & Durable：The tank surface features electrophoresis primer + baked finish, with internal asphalt anti-corrosion, making it reliable and durable.
Excellent Performance：The rear fog cannon has an effective spray distance of 25 meters.
High Efficiency：Optimized pipeline design and multi-functional composite operations significantly improve the efficiency of single washing and spraying tasks.
Convenient Operation：Highly integrated system controls with one-touch switching for multiple working conditions, significantly reducing driver operation intensity.
Technical Specifications
| Name | Unit | Pure Electric Dust Suppression Truck |
Gross Weight | kg | 4495 |
Wheelbase | mm | 2860 |
Battery Type/Brand/Capacity | kWh | LFP / CATL / 55.7 |
Tank Volume | $\text{m}^3$ | 2.8 |
Fog Cannon Spray Distance | m | 25 |
